You have installed cameras, and your NVR or DVR is already recording. Next, you want live feeds for your security team.
But in many warehouses, retail stores, and even in self-storage sites and monitoring centers, the footage gets stuck at a single recorder, office, or monitor.
That creates real security problems. Guards can’t see the right camera feed from the front desk. Managers can’t check activity from the office. Gatehouse staff may not have a live view of entrances. And when a facility already has coaxial wiring in the walls, pulling new cable just to add more viewing screens can lead to higher costs, downtime, messy installation, and unnecessary disruption.
An HDMI modulator solves that by converting the HDMI output from your NVR or DVR into an RF signal that travels through existing coaxial cable. In a security setup, it lets you distribute live camera footage across multiple screens without rewiring the building or rebuilding the video system.
For professional-grade single-channel security deployments, the VECOAX MINIMOD-2 is the best choice. The THOR Broadcast HDMI Modulator is built for 24/7 use and is broadcast-standard equipment. For under $60, the AoeSpy HDMI RF Modulator is a convenient option.
This guide covers what an HDMI modulator does in a security context, where it fits, how to choose one, product reviews, setup steps, and FAQs.
Let’s start with the basics: what exactly is an HDMI modulator?
What is an HDMI modulator?
An HDMI modulator is a device that converts an HDMI video signal into an RF (radio frequency) signal that can be transmitted over existing coaxial cable infrastructure to multiple televisions or monitors.
For surveillance, HDMI modulators distribute live camera feeds from a central NVR or DVR to monitors throughout a facility via coaxial cable already installed in the building.
For example, say a self-storage facility already has cameras covering the gate, office, drive aisles, and storage corridors. The NVR is recording everything in the back office, but the front desk staff can’t view the gate camera without logging in to the recorder. The site already has coax in the walls, but pulling new HDMI or network cable would mean extra labor, downtime, and disruption.
That’s where an HDMI modulator fits. It takes the HDMI output from the NVR, encodes it as an RF TV channel, sends it through the existing coaxial cable, and lets any connected TV display the feed by tuning to that channel.
In North America, most HDMI modulators use ATSC or QAM broadcast standards. ATSC is the digital over-the-air TV standard commonly used in the United States, while QAM is used for cable-style distribution. You may encounter either one depending on the equipment.
For retrofit security projects, the value becomes urgent. If live camera feeds are stuck at one recorder or one monitor, response slows down and blind spots grow. Existing coaxial infrastructure lets you distribute those feeds faster, without new cable pulling, major construction, or avoidable installation costs.
Why security teams use HDMI modulators?
For live video surveillance:
Security installers and facility managers use HDMI modulators when they need to show NVR or DVR video across multiple screens in a building without running new HDMI cables to every display.
For example, a self-storage facility may have an NVR in the office, cameras at the gate and in the drive aisles, and existing coaxial wiring running through the building. The problem is that the manager, front desk, or gatehouse staff may not be able to view the live camera feed at their workplace.
HDMI is useful over short distances, but it typically maxes out at around 10 meters without boosters. In larger facilities, that limit becomes a problem fast.
HDMI modulators solve this by converting the recorder’s HDMI output into a coaxial TV signal. Security teams can send live camera views through the building’s existing coax network and tune the feed on multiple TVs as a dedicated channel.
Reuse existing coax infrastructure:
Many commercial sites already have coaxial cable from previous analog CCTV or TV systems. Hotels, schools, hospitals, apartment buildings, and older commercial properties can reuse that wiring with modern HD cameras and NVRs, turning a sunk cost into a working distribution path.
Distribute video to multiple displays:
Instead of stacking HDMI splitters and dealing with signal loss, one modulator can broadcast the feed to every TV connected to the same coax network. That makes it easier to support lobby displays, guard stations, offices, corridors, and monitoring rooms simultaneously.
Extend video across larger facilities:
HDMI runs are limited without signal boosters. Coaxial runs can often support 100 to 300 meters, depending on cable quality, connectors, amplifiers, and the building layout. That makes modulators more practical for large facilities.
Build cost-effective monitoring rooms:
For monitoring rooms, the cost advantage is clear. A 6 to 12 screen setup can often be built with a multi-channel HDMI modulator headend for far less than a comparable IP video distribution matrix.
At Sirix, our monitoring operations use multi-screen setups where signal distribution reliability is non-negotiable, so we understand exactly what security professionals need from an HDMI modulator.
How does an HDMI modulator work?:
Think of an HDMI modulator like a mini broadcast station for your security system. Instead of making staff log into an app, browser, or recorder, it turns the HDMI output from an NVR or DVR into a TV channel that can be viewed on connected screens.
This solves a specific visibility problem. In a warehouse, supervisors may need live views of loading docks, receiving doors, shipping lanes, inventory aisles, and employee entrances from the operations office or guard desk. Retail store managers may need entrance, checkout, stockroom, and parking lot feeds visible from the front counter or back office. At a self-storage facility, staff may need views of the gate, keypad, drive aisle, office, and storage corridor from the front desk or gatehouse.
The modulator uses four main parts: an HDMI input port, an RF modulator or encoder, a coaxial RF output, and a channel selector. The HDMI source connects to the input. The encoder converts it into an RF channel. The coax output sends it through the building’s existing coax network.
At the receiving end, any TV or monitor with a coax input can tune to the assigned channel and display the live feed. No internet, app, or streaming is required.
How to choose the best HDMI modulator?
1. Low latency:
- Latency means delay.
- For security, the video needs to feel live. Choose a modulator with a minimum delay of 100 milliseconds or less.
- That way, if someone walks through a lobby or triggers an alarm, the video appears almost immediately on the TV screens.
2. The right TV signal type:
- Different regions use different broadcast standards.
- In North America, you usually need ATSC or QAM.
- In Europe and many other regions, you may need DVB-T or DVB-C.
- If you buy the wrong type, the TVs may not be able to find the channel.
3. Enough HDMI inputs:
- Think about how many video sources you need to show. If its a smal setup or you are looking to secure residential then one DVR would suffice. A single-channel modulator may work.
- For several feeds, like lobby, parking lot, entrance, and perimeter, you need a multi-channel modulator with 4, 8, 16, or more channels.
4. HDCP compliance:
- HDCP is copy-protection used by some HDMI devices.
- If the modulator does not handle HDCP properly, the TV may show a blank screen instead of the video feed.
- For security setups, especially when using consumer-style DVRs or mixed video sources, choose a modulator that is HDCP compliant.
5. Easy management:
For professional security installations, avoid devices that can only be configured manually.
Look for:
- Web interface.
- SNMP.
- API.
- Front-panel screen.
These make it easier to set channels, adjust signal levels, troubleshoot problems, and manage the system remotely.
6. Good RF signal control:
- The modulator sends video over coax as an RF signal.
- You want adjustable RF output so the signal is strong enough for all TVs, but not so strong that it causes interference.
- This matters in buildings that already have cable TV, antenna feeds, or other channels running on the same coax network.
Choose an HDMI modulator that has:
- Latency under 100 ms.
- Correct regional format, such as ATSC, QAM, DVB-T, or DVB-C.
- Enough HDMI inputs for your camera feeds.
- HDCP compliance.
- Web, SNMP, or API control.
- Adjustable RF output.
- Reliable hardware, preferably rackmount or metal chassis for larger sites.
In a small clinic with one DVR and six TVs, a single-channel HDMI-to-RF modulator may be enough.
For a hotel, hospital, school, or apartment building with several camera views, choose a multi-channel professional modulator so each camera feed can appear as its own TV channel.
Best HDMI modulator in 2026:
The following picks are evaluated specifically for security and surveillance deployments, factoring in signal reliability, channel flexibility, resolution support, and compatibility with commercial NVR and DVR systems.
- AoeSpy HDMI RF Modulator Coax Adapter.
- Multicom 1080P HDMI to Coax Digital Modulator.
- THOR Broadcast HDMI to Coax Modulator.
- Fosa Digital RF Modulator AV.
- VECOAX MINIMOD-2 HDMI TO COAX Modulator.
- 700m HDMI to RF Coaxial Modulator.
- Twelve Channels HDMI RF Modulator.
- StarMax MX-100R Modulator.

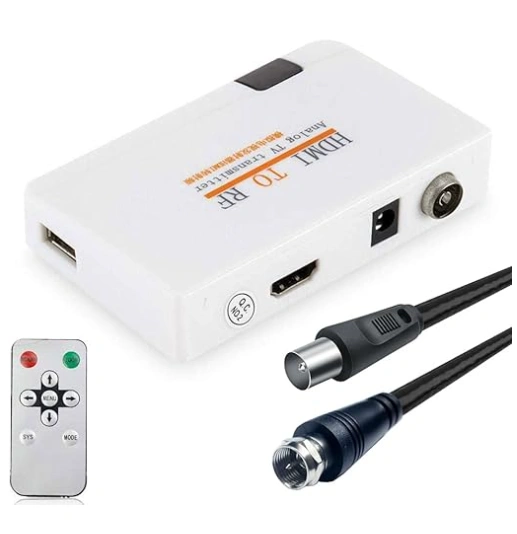

#1. AoeSpy HDMI RF Modulator Coax Adapter:
Compact design:
It is a well-known product in the market since it is small and lightweight, making it easy to place and integrate into your setup.
Resolution support:
This modulator supports 1080p video resolution and offers good image quality for most users. This HDMI RF modulator works with almost all standard media devices, such as Fire Stick, Apple TV, Roku, and even gaming consoles like PS4, PS5, and Xbox.
Input/output options:
It includes one HDMI input for connecting your digital device and one F-type female connector for coaxial cable output. The output supports the traditional RF signal necessary for older TV models, such as CRT TVs. Additionally, this device functions as an HDMI-to-coaxial cable adapter, converting HDMI signals into VHF analog output.
NTSC/PAL compatibility:
Compatible with both NTSC and PAL video signal formats, it offers wider applicability. This HDMI modulator also provides additional control options, including amplitude control, brightness and contrast adjustments, and a zoom function.
Pros and cons:
| Pros | Cons |
|---|---|
| Budget-friendly: Generally offered at an affordable price point. Easy to use: Simple setup process without requiring extensive technical knowledge. Wide compatibility: Supports various input resolutions and video signal formats. Compact and portable: Small size makes it suitable for various placements. | Limited resolution: It tops out at 1080p, which is not ideal for users seeking 4 K. Remote control inconsistency: Remote control availability can vary by model. Potential video quality loss: Modulation can introduce some signal degradation, affecting image quality in some cases. |
Who is AoeSpy HDMI RF modulator for?
Security integrators and facility managers who need a professional-grade, single-channel solution for distributing NVR output across a building’s coax network. Ideal for retail stores, office buildings, self-storage facilities, and mid-size commercial properties. The VECOAX is the go-to choice when reliability and signal quality are non-negotiable.
Price:
The AoeSpy HDMI RF Modulator Coax Adapter typically falls within the $55-$60 USD price range.
#2. Multicom 1080P HDMI to coax digital modulator:
Resolution support:
Multicom offers many great features at a budget-friendly price. Within this affordable range, you get support for full HD 1080p video resolution along with AC3 audio output, which is common in high-quality video content today.
Input/output options:
The Multicom RF HDMI modulator includes one HDMI input for your digital device and one RF output for connection to a coaxial cable network. With the Multicom RF HDMI modulator, you can distribute your HDMI content over any channel from 2 to 135. It does not compromise on video quality, providing a perfectly clean and clear image quality even for fast-paced video content, such as sports.
Additional perks:
You won’t need set-top box installations anymore. This RF HDMI modulator is compatible with almost all systems in North America and Mexico.
Remote control:
Includes a remote control for easy configuration and channel selection.
J.83B QAM or ATSC Output: Allows selection between two common digital modulation formats, offering flexibility for compatibility with different TV systems.
Pros and cons:
| Pros: | Cons: |
|---|---|
| High-definition support: Delivers clear and crisp visuals with 1080p resolution. Remote control convenience: Provides easy control over configuration and channel selection. Versatile output options: Supports both J.83B QAM and ATSC formats for broader compatibility. User-friendly interface: LCD display simplifies setup and monitoring. | Higher price point: Generally more expensive compared to some basic modulators. Limited 1080p resolution: This may not be suitable for users seeking 4K capabilities. Potential complexity: While user-friendly, setup might require slightly more technical knowledge than basic models. |
Who should buy Multicom 1080P HDMI to Coax Digital Modulator?
Any small and budget-conscious security need can be fulfilled by it. Because it requires 1080p distribution over existing coax is the core requirement. Works well for small retail and offices.
Price:
The Multicom 1080P HDMI to Coax Digital Modulator typically falls within the $50-$80 USD price range.

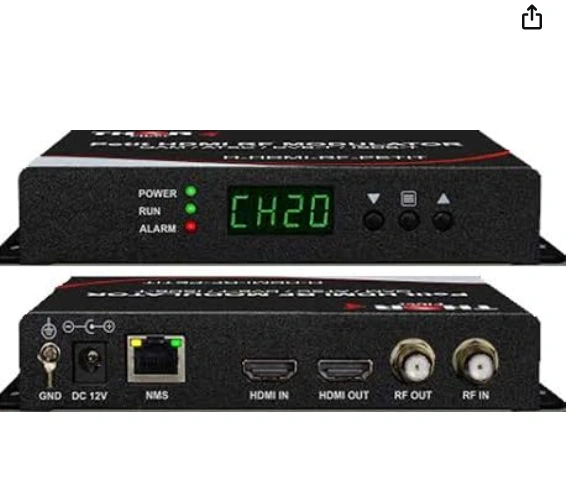

#3. THOR Broadcast HDMI to Coax Modulator:
This modulator offers a cost-effective solution for bringing high-definition content to your existing TV setup. It seamlessly converts signals from various HDMI sources, such as satellite receivers, or computers, into a format compatible with your RF TV channels. No need to replace your entire system; simply connect your devices and enjoy the upgrade!
The Thor Broadcast Modulator goes beyond basic conversion. It boasts HD MPEG2 encoding, ensuring crisp visuals, and integrates AC3 Dolby Audio for immersive sound, eliminating the need for separate components. Furthermore, it supports a wide range of HD source resolutions (720p, 1080i, 1080p) for maximum compatibility.
Resolution support:
Varies by model, typically offering 720p (HD) or 1080p (Full HD) for a balance between affordability and image quality.
Input/output:
Includes one HDMI input and one coaxial output for connection to your existing cable network.
Effortless control:
Setting up and managing your entertainment becomes a breeze with the modulator’s user-friendly design. Simply connect the unit to your PC and utilize Thor Broadcast’s proprietary GUI (Graphical User Interface) for a streamlined control experience. This eliminates the hassle of navigating complex menus or dealing with multiple remotes.
Pros and Cons:
| Pros: | Cons: |
|---|---|
| Affordable: Generally priced competitively. Easy to use: Simple setup process without extensive technical knowledge. Wide compatibility: Supports various input resolutions and video signal formats. Compact and portable: Small size makes it suitable for various placements. | Limited information: Finding detailed specifications for specific models can be challenging. Resolution variation: Resolution support can vary (720p or 1080p), so ensure it meets your needs. Remote control inconsistency: Remote availability varies by model. Potential video quality Loss: Modulation can introduce some signal degradation. |
Who should buy THOR Broadcast HDMI to Coax Modulator?
If you are a security installer or systems integrators working on multi-site enterprise projects. The THOR is built to broadcast-grade standards, these are the same standards used in stadium, hospital, and casino monitoring systems. If you are deploying across a large commercial facility or building a dedicated monitoring room, THOR’s reliability under continuous 24/7 operation makes it the professional standard.
Price:
Broadcast HDMI to Coax Modulators typically fall within the $450- $500 USD price range.
#4. Fosa Digital RF Modulator AV:
This modulator is packed with features designed to save you money, simplify setup, and give you precise control over your viewing experience.
First and foremost, it’s a cost-effective solution for integrating your HDMI devices into your existing cable TV system. Features like the 2A/V output offer wide application, meaning you can connect various devices beyond just HDMI.
Plus, the humanized design ensures a simple installation and operation process. You won’t need to be a tech wiz to get everything up and running. On top of that, the modulator provides granular control over your signal with features like adjustable VHF/UHF operating frequency, output level, and both audio and video output level adjustments.
To further enhance your experience, a channel digital display lets you easily select the desired output channel. With all these features combined, the Fosa Digital RF Modulator empowers you to create a customized and user-friendly entertainment setup without breaking the bank.
Pros and Cons:
| Pros: | Cons: |
|---|---|
| Affordable: Generally falls within a budget-friendly price range. Easy to set up: Straightforward installation process for quick connection. Compact and space-saving: Ideal for discreet placement without cluttering your entertainment area. (Remote control availability varies) | No UHD support: Not suitable for Ultra High Definition (UHD) TVs. Limited remote control availability: Not all models include a remote, which can be inconvenient for some users. Limited warranty information: Warranty details may be difficult to find for some sellers. |
Who should buy the Fosa Digital RF Modulator?
Its ideal for temporary security installations, pop-up retail security setups, and construction sites where equipment is deployed and redeployed frequently.
We dont recommend it for permanent 24/7 monitoring environments, but ideal when portability and low upfront cost are the priority.
Price:
The Fosa Digital RF Modulator AV typically falls within the $20-$30 range.

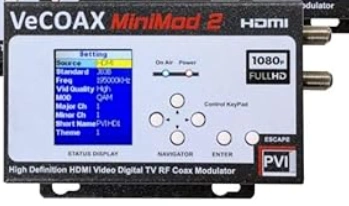

#5. VECOAX HDMI to COAX Modulator:
Unlike traditional splitters limited to a few TVs, this system allows you to distribute your HDMI video source to an unlimited number of TVs. Perfect for large-scale applications like schools, hotels, or security centers.
Crystal-Clear Viewing: Enjoy stunning visuals on all connected TVs. The system supports Full HD 1080p Dolby video distribution, ensuring sharp images and vibrant colors for an immersive viewing experience.
Seamless Integration: Setting up is as easy as 1-2-3. Simply connect your HDMI source, plug in the TV cable to the system, and rescan your TVs. Within minutes, you’ll be enjoying your content on all connected screens.
Universal Appeal: This system caters to a wide range of applications. Whether you need it for your home entertainment setup, a multi-room hotel experience, a centralized display system in a church or gym, educational purposes in schools, or even for video surveillance, this versatile solution offers a convenient and effective way to distribute your HDMI video.
Pros and Cons:
| Pros: | Cons: |
|---|---|
| Professional-grade quality: Delivers Full HD 1080p visuals and Dolby Digital audio for a superior viewing experience. Easy to use: Straightforward installation and operation process. Multiple TV distribution: Expands your HDMI source to an unlimited number of TVs using existing coaxial cables. (Requires additional modulators for each TV). Compact and discreet: Minimal footprint keeps your entertainment setup clutter-free. (Remote control availability varies) | Limited features: Lacks some features found in higher-end modulators, such as multi-channel input or support for advanced audio formats. Remote control availability: Not all models include a remote control, which can be inconvenient for some users. Higher price point: May be more expensive compared to some basic modulators. |
Who is VECOAX HDMI to COAX Modulator for?
It’s suitable for security integrators and facility managers who need a professional-grade, single-channel solution to distribute NVR output across a building’s coax network. Ideal for retail stores, office buildings, self-storage facilities, and mid-size commercial properties.
Price:
The VECOA X MINIMOD-2 typically falls within the $400-$500 range.
#6. 700m HDMI to RF Coaxial Modulator:
Flawless Sound:
MPEG2 audio encoding guarantees smooth, synchronized sound that perfectly complements the high-quality visuals. Relive those epic battles and classic soundtracks with perfect clarity.
Simple setup:
No need to scramble for the right cables! The modulator works with most common coaxial cables (RG6, RG7, RG11) and lets you adjust the frequency to avoid any signal interference in your home.
The standard RF connector makes it easy to connect the modulator to your existing coaxial cable. Just plug in your HDMI device, and you’re ready to rediscover a world of entertainment.
Pros and Cons:
| Pros | Cons |
|---|---|
| High-quality video and audio: Provides clear visuals and synchronized sound for an enjoyable viewing experience. Wide coaxial cable compatibility: Works with most commonly used cables for easy setup. Adjustable frequency: Helps avoid signal interference for a clear picture. Simple setup: Standard RF connector simplifies connection. | No remote control: Lacks remote control functionality for channel or setting adjustments. |
Who should buy 700m HDMI to RF Coaxial Modulator?
Any complex, big space where camera feeds need to reach display points that are far from the central equipment room. For example: warehouses, logistics centers, parking structures, and large commercial properties. The 700m signal range makes it the right tool for facilities where standard HDMI cable runs would fail.
Price:
The price of the 700m HDMI-to-RF Coaxial Modulator can vary by retailer. You can expect it to fall within the $200-$250.
#7. Twelve Channels HDMI wRF Modulator:
The Twelve Channels HDMI RF Modulator tackles large-scale entertainment with ease. It converts signals from multiple HDMI sources simultaneously, ensuring crisp HD video across all channels. Network control and remote configuration enable centralized management, making them ideal for hotels, schools, and businesses that need to distribute HD content to numerous TVs.
Input/output:
Choose your desired RF output format (QAM, ATSC, DVB-T, or ISDB-T). Delivers a strong signal (+24 dBmv) for reliable HDTV distribution over existing coaxial cable networks.
Easy setup:
Small footprint and lightweight for easy placement and mounting. Includes rack ears for rack-mounted installations.
| Pros: | Cons: |
|---|---|
| Ideal for large-scale installations in bars, restaurants, and other venues requiring multi-source content distribution. Offers high-definition video and audio support.Provides comprehensive control and monitoring capabilities through network management and a GUI interface.Easy to install and manage.Compact design saves space. | Requires network connection for full control and advanced features. Proprietary NMS software might limit user control preferences.The price may be higher than that of basic modulators. |
Who should use Twelve Channels HDMI RF Modulator?
Any deployment requires simultaneous distribution of 12 independent camera feeds or NVR outputs across a facility, such as enterprise security operations centers, casino surveillance rooms, hospital monitoring hubs.
Price:
While specific pricing may vary depending on the retailer, this system likely falls within a higher price range due to its multi-channel and advanced features, such as $8,000-$ 8,500.

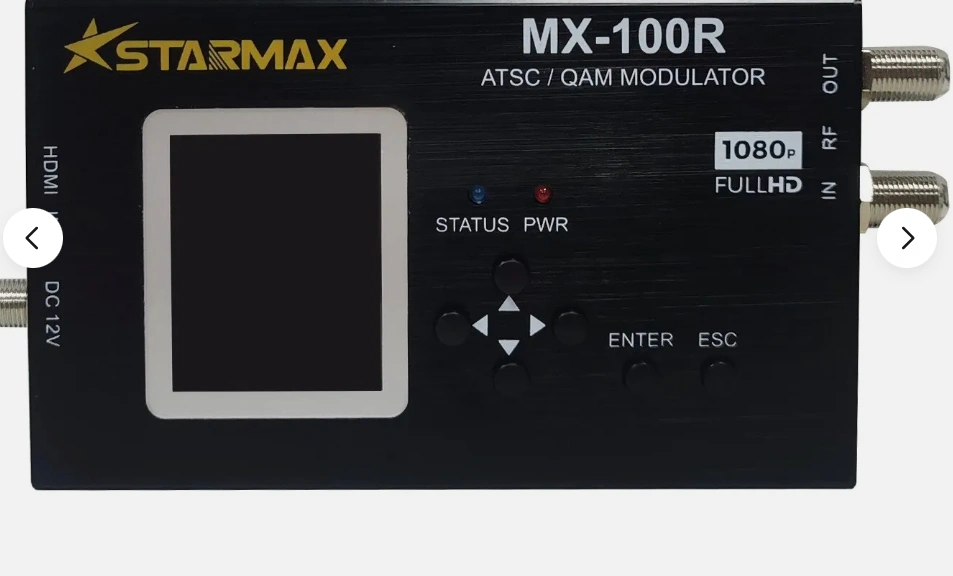

#8. StarMax MX-100R Modulator:
The StarMax MX-100R Modulator boasts crystal-clear video quality, making your old favorites shine on the big screen.
It excels for long-distance transmission over coaxial cables, perfect for larger spaces. The modulator features a user-friendly 2-color LCD screen for easy setup, bridging the gap between your modern HDMI devices and older TVs with coaxial inputs.
Pros and Cons:
| Pros | Cons |
|---|---|
| Crystal-clear video quality: Enhances your viewing experience with sharp images for a more immersive experience. Long-distance transmission: Reliable signal delivery even over extended distances using coaxial cables, making it suitable for larger spaces. User-friendly design: Features a 2-color LCD screen for easy configuration, simplifying setup for users of all tech levels. Versatile applications: Ideal for both home entertainment systems and small office setups requiring high-quality video transmission over RF signals. | Limited information: Detailed specifications regarding advanced features, warranty information, or supported resolutions might be limited depending on the retailer. Limited feature set: Compared to high-end modulators, the MX-100R might lack advanced features like multi-channel support or high-end audio encoding. |
Who should buy the StarMax MX-100R modulator?
Any small to mid-size commercial deployment where you want to balance cost and performance for operations that don’t require enterprise-grade throughput.
For example medium-sized office buildings, small self-storage sites or clinics.
Price:
The price of the StarMax MX-100R Modulator is approx US $200-250.
HDMI modulator vs IP video distribution: Which is right for your security setup?
The choice between an HDMI modulator and IP video distribution depends on your building infrastructure mainly and your security requirements .
When is an HDMI modulator a better fit?
If your site has existing coaxial cable infrastructure, start with an HDMI modulator. It’s the better fit when you need to cover a back office, cashier station, monitoring desk, or multiple facility screens from one NVR output without constant manual checks or new cable runs.
Look for a plug-and-play setup, medium-range coax support up to roughly 300 meters over quality cable, and compatibility with a single NVR or DVR HDMI output. Those features matter because they help you reuse existing analog CCTV wiring, avoid the higher cost of IP endpoints, and distribute a single live security feed to multiple TVs with minimal IT involvement.
If you need 4K HDR quality, dynamic source-to-screen routing, or an IT-managed AV network, this setup may not be enough. In that case, add an IP video distribution system or choose HDMI over IP for more flexible signal management.
When is HDMI over IP a better fit?
If your site has new Cat6 or Cat5e cabling already being installed, start with HDMI over IP. It’s the better fit when you need to cover a security operations center, multi-screen monitor wall, or large facility display network with flexible source-to-screen routing.
Look for 4K HDR support, VLAN-friendly network configuration, and encoder-decoder scalability. Those features matter because they help you carry higher-quality signals, route any source to any display dynamically, and manage AV traffic through an IT-controlled network.
If your site lacks structured cabling, IP switching, or IT support for network segmentation, this setup may not be sufficient. In that case, add the required network switches and VLAN planning, or choose an HDMI modulator if coax is already in place.
Security and surveillance deployment use cases:
At Sirix, we’ve deployed and supported security and surveillance systems across retail sites, self-storage facilities, parking lots, construction sites, and professional monitoring environments. That experience gives us a practical view of where HDMI modulators fit, where they fall short, and what security teams should look for before choosing one.
Retail store security monitoring:
If your retail store has 7-8 eight cameras connected to a central NVR, start with a single-channel HDMI modulator. It’s a better fit when you need to cover the back office, cashier station, and stockroom screen without running separate HDMI cables to every display.
Look for plug-and-play setup, coax channel broadcasting, and compatibility with your NVR’s HDMI output. Those features matter because they help you reuse the store’s existing coax wiring and keep camera visibility simple for managers and staff.
If you need each screen to show a different camera view, this setup may not be enough. In that case, add a multi-channel HDMI modulator headend or choose a more advanced video distribution system.
Self-storage facility monitoring:
For self-storage sites with long coax runs across multiple buildings, corridors, and gates, a multi-channel HDMI modulator headend usually makes sense. It provides zone-based live video distribution for gate activity, drive aisles, and customer access points, especially when staff need to view different areas on several monitors in the central office.
The features to check are multi-channel input support, dedicated channel mapping, coax network compatibility, and reliable RF output control.
The trade-off is higher equipment costs and greater setup complexity than with a single-channel modulator.
Parking garage and lot security:
If your main problem is getting live parking garage footage to multiple attendant booths, start with the site condition evaluation.
For multi-level parking structures where coax already reaches each booth, an HDMI modulator is usually the better fit. It can provide consolidated NVR feed distribution, dedicated channel tuning, and live video over existing wiring, so attendants can monitor PTZ cameras.
If latency is a problem, confirm the delay with the specific unit before buying. Most HDMI modulators introduce less than 200ms of latency, which is usually acceptable for live security monitoring. If the site does not have usable coax, add signal extenders or switch to an IP-based video distribution system.
Construction site security:
If you’re covering a temporary construction site, use a portable HDMI modulator. It’s a good fit when you need a site office display, a portable NVR connection, and temporary video distribution without having to build permanent network infrastructure.
If the site changes often or the project will move in a few months, pair it with a temporary coax run and a portable NVR. When the jobsite moves, the modulator and coax can be rolled up, redeployed, and reused without leaving fixed infrastructure behind.
Benefits of the HDMI modulator:
Leverages existing coaxial cabling:
Modulators eliminate the need for expensive rewiring to upgrade to HDMI connections. You can utilize your existing coaxial cable infrastructure, which is commonly found in many buildings.
Signal transmission:
Coaxial cables are well-suited for transmitting CCTV signals over longer distances compared to some limitations of HDMI cables. This is especially beneficial for larger facilities or properties with dispersed cameras.
Simplicity:
Easy Installation and Integration: CCTV modulators are typically easy to install and integrate into existing CCTV systems. They don’t require significant technical expertise for setup.
Compatibility with older devices:
Modulators bridge the gap between analog video signals from traditional CCTV cameras and the digital HDMI format utilized by modern TVs and recording systems.
Distribution of CCTV feeds:
They allow you to distribute the CCTV camera feed to various locations within your facility or property, making it easier for security personnel to monitor multiple areas simultaneously.
Common HDMI modulator issues in security deployments (and how to fix them):
No signal on the monitor:
This usually happens when the Coax is not selected, or the connectors are loose, or signal drop from too many splits.
You can solve this by confirming the TV coax input is selected. Re-scan channels and verify connectors are fully seated.
Pixelated or flickering image:
This is a pattern we see again and again, mainly due to a weak RF signal from too many splits or a long coax run with cable loss.
You can fix this by reducing the number of splits, upgrading to RG6 cable, or installing a distribution amplifier before the first split point.
Audio out of sync with video:
This is often the first warning sign. The budget modulators sometimes introduce an inconsistent audio delay. You can prevent this by checking the modulator’s audio delay settings. If the issue persists, the unit is not suitable for 24/7 monitoring, upgrade to VECOAX or THOR.
NVR HDMI output not recognized by modulator:
This happens more often than it should. A resolution mismatch is th emain cause. So what happens is NVR outputs 4K by default but the modulator only accepts 1080p.
Solve this by going into NVR display settings and force HDMI output to 1080p or 720p before connecting the modulator.
Signal only reaching some rooms:
There’s no point in the HDMI if the signals are only reaching some rooms. Is usually due to a damaged COAX . Either the Coax infrastructure split unevenly, or one branch has a corroded or damaged connector.
Fix it by using a coax signal meter to locate the drop-off point. Replace the faulty connector or cable segment.
Frequently asked questions:
Can HDMI modulators work with NVR or DVR security systems?
Yes, HDMI modulators work with most NVR and DVR security systems by converting the recorder’s HDMI output into an RF signal for coaxial distribution. The only compatibility requirements are that the NVR HDMI output resolution must match what the modulator supports. Most modern units accept 1080p and premium models support 4K.
How many screens can one HDMI modulator distribute to?
One HDMI modulator can distribute a security camera feed to multiple screens, depending on the coax network, splitter quality, signal strength, and modulator output power. For large facilities, add a distribution amplifier before the coax splitter.
What is the maximum distance for distributing camera feeds over coaxial cable?
The maximum coax distance depends on cable type and signal strength. We suggest the standard RG6 coaxial cable because it gives exceptional signal quality up to approximately 300 meters (roughly 1,000 feet).
Beyond this, use higher-quality, low-loss coax or install an inline coaxial signal amplifier at the midpoint.
Do HDMI modulators introduce latency in live security camera feeds?
HDMI modulators can introduce slight latency. Most introduce 100 to 300ms – less than a third of a second. Although it is acceptable for live security monitoring.
You must avoid budget units with no published latency spec, they might lag 1 to 2 seconds.
What is the difference between ATSC and QAM for a security monitoring setup?
ATSC is commonly used for over-the-air digital TV channels, while QAM is used for cable-style coax distribution in security monitoring setups.
Can I add more monitors to my security system without rewiring?
Yes, an HDMI modulator lets you add more monitors to a security system by sending NVR or DVR video over existing coax wiring.
Which HDMI modulator is best for a self-storage facility?
The best HDMI modulator for a self-storage facility is usually the VECOAX MINIMOD-2 ($400 to $500), which is the best single-channel option.
For multiple camera zones, go for a multi-channel VECOAX rack or THOR.
Do I need a decoder or set-top box at each monitor?
Usually, no, you do not need a decoder or set-top box if each TV has a coax input and can tune to the modulator’s assigned RF channel.
Modern TVs with a built-in ATSC or QAM tuner receive the broadcast directly through coax. Older TVs do not have a digital tuner; they will require a small set-top box or decoder at each location.
Is an HDMI modulator better than HDMI over IP for security camera distribution?
An HDMI modulator is often better for facilities with existing coax cabling, while HDMI over IP is better for sites with a robust network infrastructure.
HDMI over IP also suits new construction with structured Cat5e/Cat6 cabling. For most commercial retrofit projects, HDMI modulators deliver superior ROI.
How does professional remote video monitoring integrate with an HDMI modulator setup?
Professional remote video monitoring uses the NVR, DVR, or camera platform for off-site response, while an HDMI modulator distributes local live views to on-site screens.
Sirix operates independently, and the agents connect directly to your NVR or IP cameras via a secure cloud. The HDMI modulator handles on-site display distribution; Sirix handles 24/7 live video monitoring. That’s how two systems complement each other with no special integration required.
Final take:
Top contenders:
- Budget-friendly: AoeSpy (easy to use, 1080p), Fosa Digital (wide application).
- Clear visuals: Multicom (1080p, remote control), THOR Broadcast (all-in-one).
- Large-scale distribution: VECOAX (multiple TVs, Full HD).
Not sure if modulators are the right fit for remote video monitoring? Learn more about digital solutions for crystal-clear remote footage. Contact us today for a customized security solution for your business.
