Are you thinking about beefing up your business’s security? Adding a video surveillance system is a great place to start. But with all the technical terms thrown around, choosing the right system can be exhausting. “DVR vs NVR” — what’s the difference between DVRs and NVRs?
Don’t worry; we’ve got you covered. Our blog breaks down the main differences between these two security recording systems.
Learn how each system works, discover the pros and cons, and determine which fits your needs.
Both record footage, but how they handle the video is different.
Let’s find out what a DVR is.

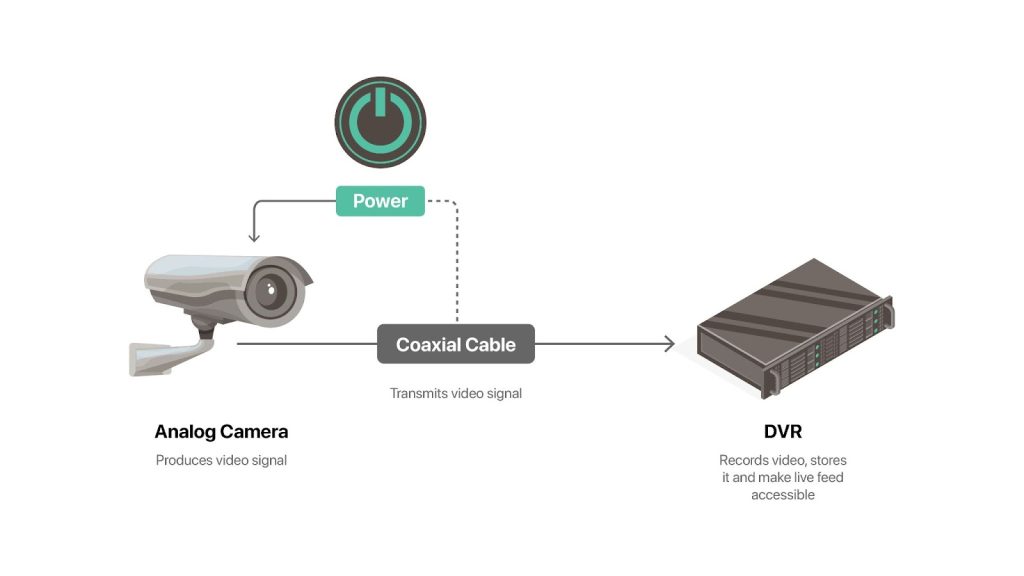

DVR (Digital Video Recorder):
It receives the raw, unprocessed video feed from analog security cameras, like a scrambled signal.
The DVR acts like a translator, converting this scrambled signal into a digital format you can understand and store.
Since the DVR converts, a direct connection (usually a coaxial cable) is needed to each camera.

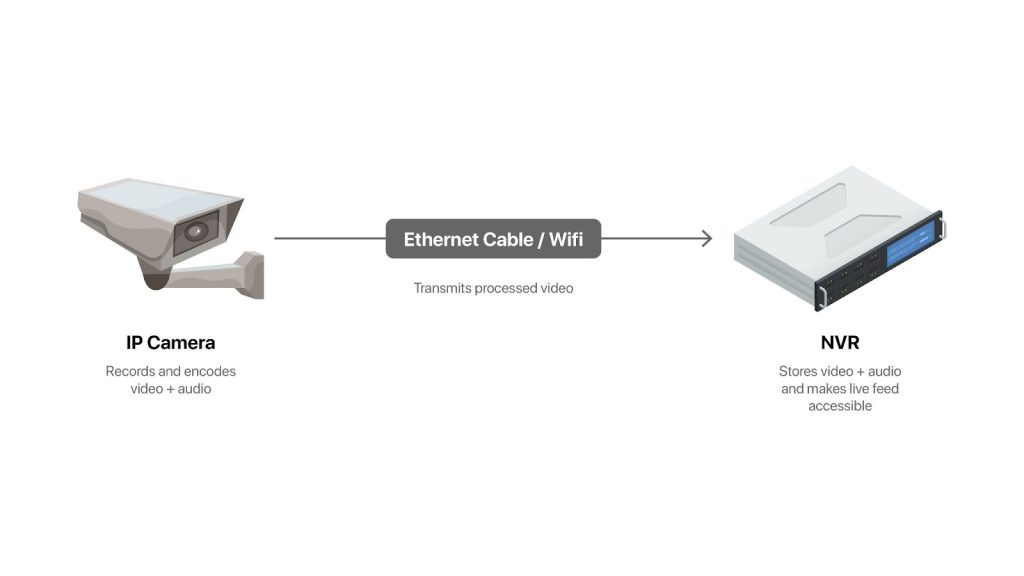

NVR (Network Video Recorder):
The security cameras convert the video feed into a digital format before sending it over a network (like Wi-Fi or Ethernet cable) to the NVR.
The NVR just stores and manages the recordings, like a filing cabinet for digital videos.
NVR systems are more flexible because you only need the cameras on the same network as the NVR, not directly connected.
DVR vs NVR: Key Differences
| Feature | DVR | NVR |
|---|---|---|
| Camera Type | Analog | Digital (IP Cameras) |
| Processing | Done by DVR | Done by Camera |
| Connection | Coaxial Cable | Network (Ethernet/Wi-Fi) |
DVR system components:
The Cameras:
DVRs rely on analog cameras, sometimes called CCTV cameras. These are the classic security cameras you might see in stores.
They’re simpler to make than the newer digital cameras, which keeps the price of DVR systems lower overall.
The downside? Analog cameras capture a less clear picture. Imagine looking at a photocopy of a picture – that’s kind of what you get with analog cameras compared to the sharper digital cameras used in other systems.
The Cables:

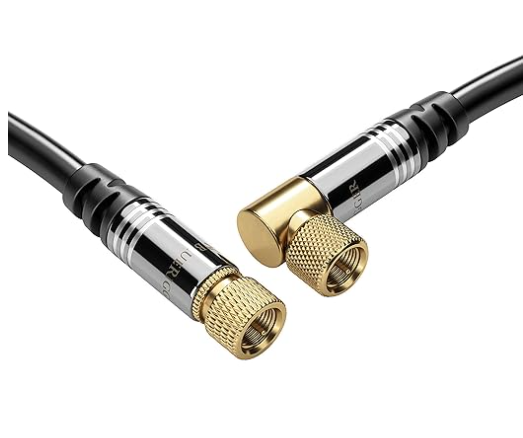

Coaxial are the thick, round cables you might have seen connecting cable TV boxes. They can carry the video signal from the camera to the DVR for up to 500 meters, which is pretty good!
Unfortunately, unlike some newer systems, coaxial cables can’t deliver power to the camera. This means you’ll need two cables: one for the video signal (coaxial) and another separate cable to power the camera itself. This can make installation a bit trickier.
Standard coaxial cables can’t handle sound either. If you want audio recording, you’ll need a separate RCA cable and the DVR itself might have a limited number of audio input ports, restricting how many cameras can record sound.
The DVR Recorder:
The DVR acts like a translator. It receives the raw, scrambled video signal from the camera and uses an AD encoder to convert it into a digital format that you can understand and store.
Since the DVR decodes the signal, every camera needs to be directly connected to the recorder with its own cable for both video and power. This can limit flexibility compared to newer systems.
NVR system components:
The Cameras:
NVR systems use IP cameras. Unlike the analog cameras used in DVRs, IP cameras can process video data on their own before sending it to the recorder.
Many IP cameras have microphones, allowing them to record sound alongside the video. This can be helpful for capturing conversations or identifying suspicious noises.
Some advanced IP cameras even offer intelligent video analytics like license plate recognition or facial recognition. Imagine your camera automatically identifying a car leaving your driveway!
The Cables:
IP cameras typically connect to the NVR using Ethernet cables, similar to the ones you might use for your computer.
These cables are easier to run through walls and tight spaces compared to bulkier coaxial cables used in DVR systems.
The best part? Some NVR systems use PoE which transmits both power and data over the same Ethernet cable. This eliminates the need for separate power cables for each camera, making installation a breeze.
The Recorder:
The NVR recorder itself is simpler compared to a DVR. It focuses on storing and managing the video footage sent by the IP cameras, which have already processed the video data. This allows NVRs to be more efficient with storage space:
Many NVRs allow footage to be uploaded to cloud storage services. This is a great way to back up your recordings off-site in case of a local storage failure, like a fire or theft.
Key factors to consider when choosing between a DVR and NVR system:
The cost of the cameras:
DVRs work with analog cameras, an old technology that has been around for decades. So they are simpler to manufacture and are less expensive than digital IP cameras used in NVR systems.
IP cameras are more complex as they contain their own processors and encoders to convert the video signal into a digital format before transmitting it.
Additionally, IP cameras are passive devices, meaning they don’t require a separate power supply. Many IP cameras require Power over Ethernet (PoE), simplifying cabling but adding some cost.
Installation requirements:
Setting up a DVR system might be more accessible due to its reliance on coaxial cables. These cables are familiar to many people who have ever hooked up a cable TV or satellite dish.
They are also relatively inexpensive and readily available at most hardware stores.
On the other hand, NVRs rely on network connections, which might require extra work depending on your existing network setup.
You’ll need to ensure that your network can handle the additional data traffic from the security cameras, especially if you plan on using high-resolution CCTV cameras.
In some cases, you might need to invest in additional network switches or run new Ethernet cables to connect the cameras to the NVR. This can add to the overall installation cost.
Storage space:
DVRs deal with raw, uncompressed video data captured by analog cameras. Imagine recording a phone conversation – you get the entire unfiltered audio stream. This unprocessed video data takes up a lot of storage space on the DVR.
NVR systems, on the other hand, work with digital IP cameras. These cameras can compress the video data before sending it to the NVR.
Think of it like using a zip file to compress a bunch of documents – it saves space without losing important information.
Remote access:
DVR systems themselves often don’t have built-in features for remote access. You might need to purchase additional hardware or software to view your cameras from afar.
This can add extra costs and complexity to your setup.

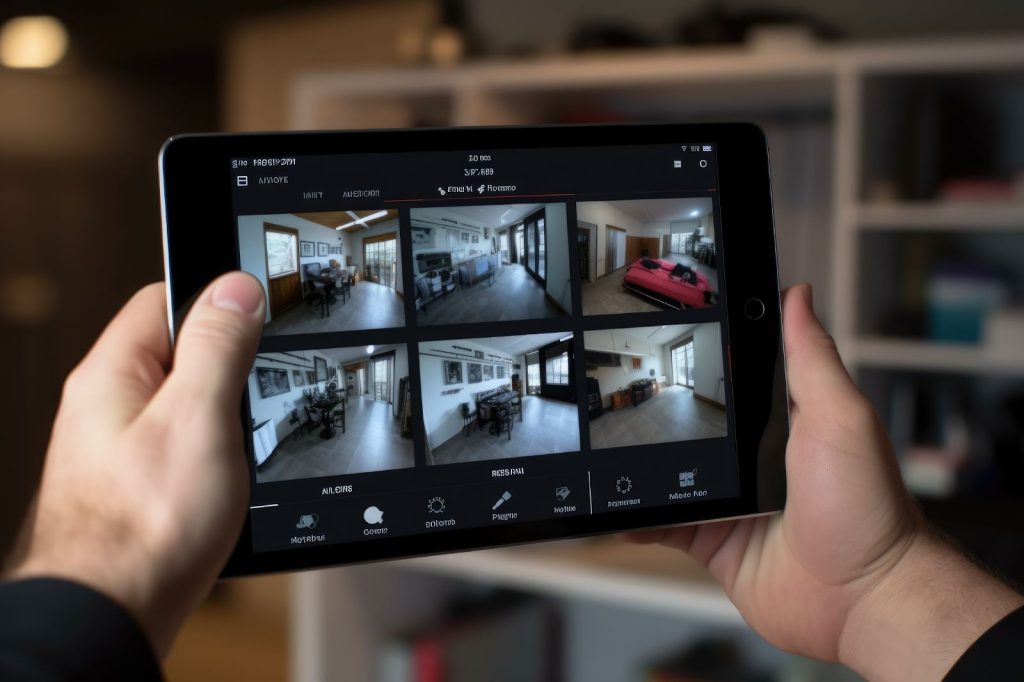

NVRs often come with built-in features for remote access. There’s usually a dedicated app you can download on your phone or computer that allows you to view your cameras live or access recordings from anywhere with an internet connection.
This eliminates the need for extra hardware or software and keeps things simple.
Video Quality:
NVRs work with IP cameras, such as Axis Dome IP cameras.
The video signal captured by these high-quality ai security cameras is neither converted nor compressed, unlike with DVR systems. This minimal processing results in sharper, clearer images with enhanced detail.
Digital IP cameras can support much higher resolutions than traditional analog cameras used with DVRs.
We’re talking high-definition (HD) and even ultra-high-definition (UHD) resolutions, compared to the standard definition (SD) limitations of analog cameras.
So you can zoom in on footage and identify faces or objects with greater clarity! Just what you need to keep your shopping mall secure! Right?
DVR vs NVR Security Systems: Pros and Cons
| Feature | DVR | NVR |
|---|---|---|
| Camera Compatibility | Analog Cameras (Lower resolution) | IP Cameras (Higher resolution) |
| Video Quality | Lower resolution (SD) | Higher resolution (HD, UHD) |
| Connectivity | Coaxial Cables (limited distance) | Ethernet Cables/Wi-Fi (more flexible) |
| Remote Access | May require additional configuration | Easier through network connection |
| Scalability | Limited (adding cameras may require replacing DVR) | Easier to scale with additional IP cameras |
| Cost | Generally less expensive (cameras and system) | Generally more expensive (IP cameras) |
| Installation | Easier (familiar coaxial cables) | May require additional network setup |
| Storage Space | Uses more storage space (uncompressed video) | Uses less storage space (compressed video) |
Enhancing your DVR or NVR system with video analytics:
While DVR vs NVR are the two main recording system types, some hybrid systems are compatible with both analog and IP cameras.
Features like remote access, mobile app integration, and cloud storage are becoming increasingly common in both DVR and NVR systems via video analytics.
Video analytics use advanced algorithms to analyze video streams and identify specific events, like motion detection.
Benefits of video analytics:
Reduced false alarms:
Regular motion detection can trigger alerts for things like blowing leaves or stray animals. Video analytics can differentiate between these and actual security threats, like people or vehicles entering restricted areas.
Faster response times:
With only important events triggering alerts, you can react quicker to real security incidents.
Imagine searching through hours of footage to find a specific event. Video analytics allow you to search for specific actions or objects, like a person carrying a package or a vehicle with a particular license plate number.
Increased situational awareness:
Video analytics can track objects and people within the camera’s view, giving you a better understanding of what’s happening on your property.
Conclusion:
In the comparison of DVR vs NVR, DVRs offer cost-effectiveness and simplicity, making them ideal for basic setups. On the other hand, NVRs, while pricier and more complex to install, provide superior video quality, advanced features, and scalability.
Consider your budget, installation constraints, and desired functionality to make the right choice for your business’s security needs.
